PGBadger | Postgresql log analysis made easy

The need for postgresql log analysis?

While writing sql for any flow, primary focus is on the correctness of the query and not on the performance of the query. Performance issues creep in when updating/iterating a flow iteratively over multiple development cycles.Query performance is important to analyze during scaling. This is where query log analysis comes in.

In one of our cases, a complicated workflow was significantly slow when we load tested it. We were trying to figure out the bottleneck both in code structure and with query performance. Our go-to tool for query performance analysis became pgBadger.

What is a postgresql query log?

A query log is a log of all the executed db queries. A good practice is to enable query logging on the database server. This helps in debugging and performance analysis. The query log contains the following information:

• Query
• database user
• database name
• date and time of query execution
• time taken to execute the query etc.

What is pgBadger?

The most succinct description comes from pgBadger itself:

pgBadger is a PostgreSQL log analyzer built for speed with fully detailed reports and professional rendering. It outperforms any other PostgreSQL log analyzer.

links -

• github
• Documentation

How to use pgBadger

Install pgBadger

brew install pgbadger Link

Set up logging in postgresql

There are multiple ways to do it (You can refer to pgbadger documentation for more details pgBadger postgres configuration ):

1. Edit postgresql.conf

Edit the postgresql.conf file to enable logging. Either edit the file directly or use the ALTER SYSTEM command.

# Edit postgresql.conf
vim /usr/local/var/postgres/postgresql.conf

# OR

# Edit postgresql.conf using ALTER SYSTEM
psql -U postgres -c "ALTER SYSTEM SET log_destination = 'stderr';"
psql -U postgres -c "ALTER SYSTEM SET logging_collector = 'on';"
psql -U postgres -c "ALTER SYSTEM SET log_directory = 'logs';"
psql -U postgres -c "ALTER SYSTEM SET log_filename = 'postgresql.log';"
psql -U postgres -c "ALTER SYSTEM SET log_min_duration_statement = 0;"
psql -U postgres -c "ALTER SYSTEM SET log_line_prefix = '%t [%p]: [%l-1] user=%u,db=%d,app=%a,client=%h ';"
psql -U postgres -c "ALTER SYSTEM SET log_checkpoints = 'on';"
psql -U postgres -c "ALTER SYSTEM SET log_connections = 'on';"
psql -U postgres -c "ALTER SYSTEM SET log_disconnections = 'on';"
psql -U postgres -c "ALTER SYSTEM SET log_lock_waits = 'on';"
psql -U postgres -c "ALTER SYSTEM SET log_temp_files = 0;"
psql -U postgres -c "ALTER SYSTEM SET log_autovacuum_min_duration = 0;"
psql -U postgres -c "ALTER SYSTEM SET log_error_verbosity = 'verbose';"

Make sure you edit the postgresql.conf file and not the postgresql.auto.conf file. Postgres generates postgresql.auto.conf file and the file will be overwritten when the server restarts.

OR

2. Update docker-compose.yml

Update docker-compose.yaml file to add the following logging configuration:

mydb:
  image: 'postgres:11'
  ports:
    - '5432:5432' # machine:image
  command:
    [
      'postgres',
      '-c',
      'logging_collector=on',
      '-c',
      'log_destination=stderr',
      '-c',
      'log_directory=logs',
      '-c',
      'log_filename=postgresql.log',
      '-c',
      'log_min_duration_statement=0',
      '-c',
      'log_line_prefix=%t [%p]: [%l-1] user=%u,db=%d,app=%a,client=%h ',
      '-c',
      'log_checkpoints=on',
      '-c',
      'log_connections=on',
      '-c',
      'log_disconnections=on',
      '-c',
      'log_lock_waits=on',
      '-c',
      'log_temp_files=0',
      '-c',
      'log_autovacuum_min_duration=0',
      '-c',
      'log_error_verbosity=verbose',
    ]
environment:
  TZ: 'Europe/Stockholm'
POSTGRES_USER: 'postgres'
POSTGRES_PASSWORD: 'postgres'
POSTGRES_DB: 'db_dev'
volumes:
  - database-data:/var/lib/postgresql/data/ # persist data even if container shuts down
  - ./:/var/lib/postgresql/data/logs/ # persist logs even if container shuts down, logs will show up in the current directory
  - ./postgresql.conf:/etc/postgresql/postgresql.conf # custom postgresql config
networks:
  - default

Restart the database

docker-compose down && docker-compose up -d Link

Generate some queries

Start using application and generate some logs. Alternatively, generate some logs by running some queries manually OR even running load tests if available.

Run pgBadger

Just ask pgBadger to digest logs and create a report at ./report.html.

pgbadger -I -O ./report.html ./postgresql.log Link

View the report

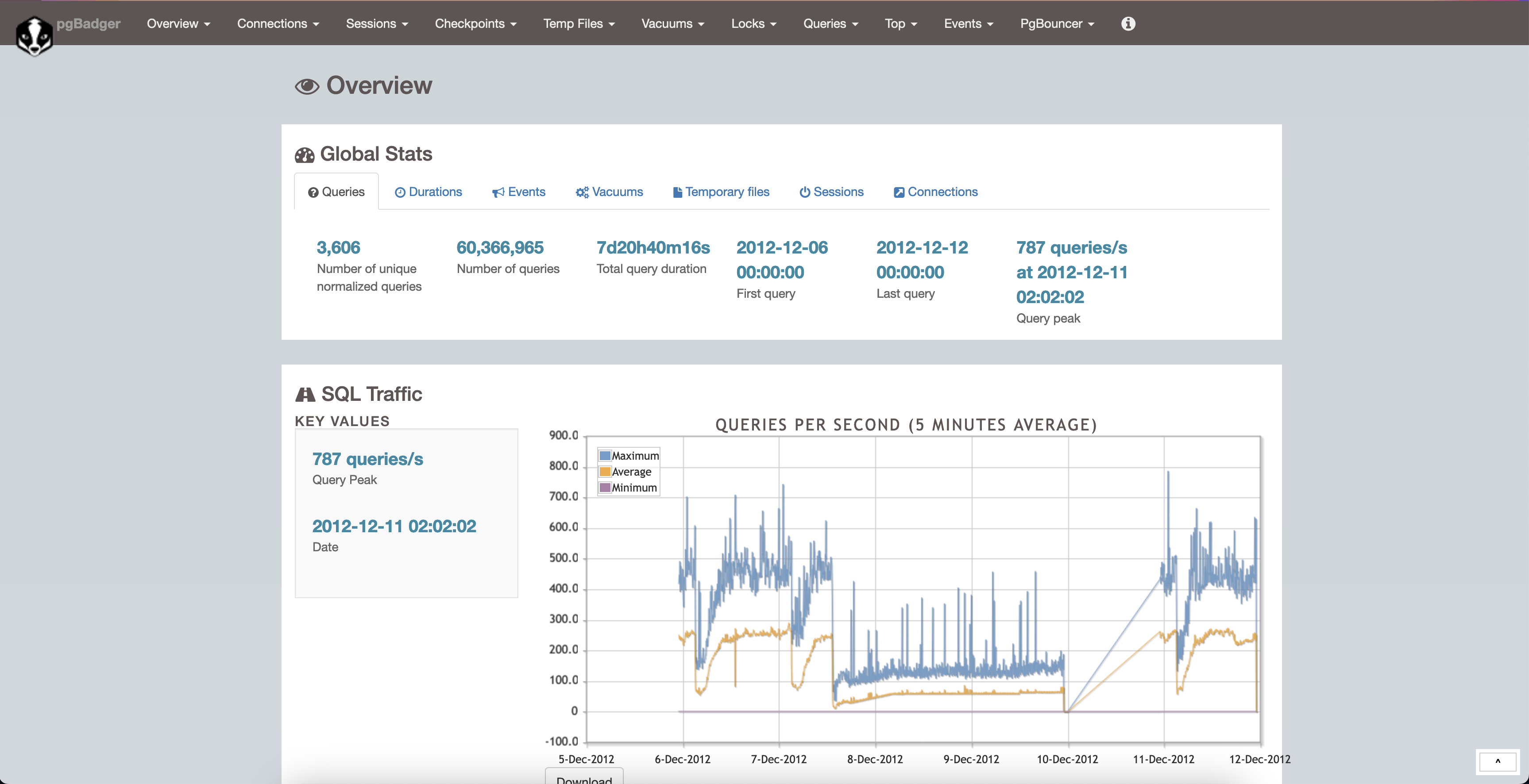

Open the report in your browser and you will see something like this:

It has heaps of information. You can see the top queries, slow queries, errors, etc.

Conclusion

pgBadger is a great tool to analyze postgresql query logs. It is easy to use and provides a lot of information. It is a must-have tool for any postgresql developer.
